Current model
ZW1200 Series
Approximately 10 TPH · 132 kW · 1250 × 600 mm reference configuration
View specifications →ZW1200 Fixed Comprehensive Wood Crusher
A compact fixed electric configuration for continuous wood processing at approximately 10 TPH.
Stationary crusher model
ZW1200 Series
A compact fixed electric configuration for continuous wood processing at approximately 10 TPH.
- Electric drive for continuous production

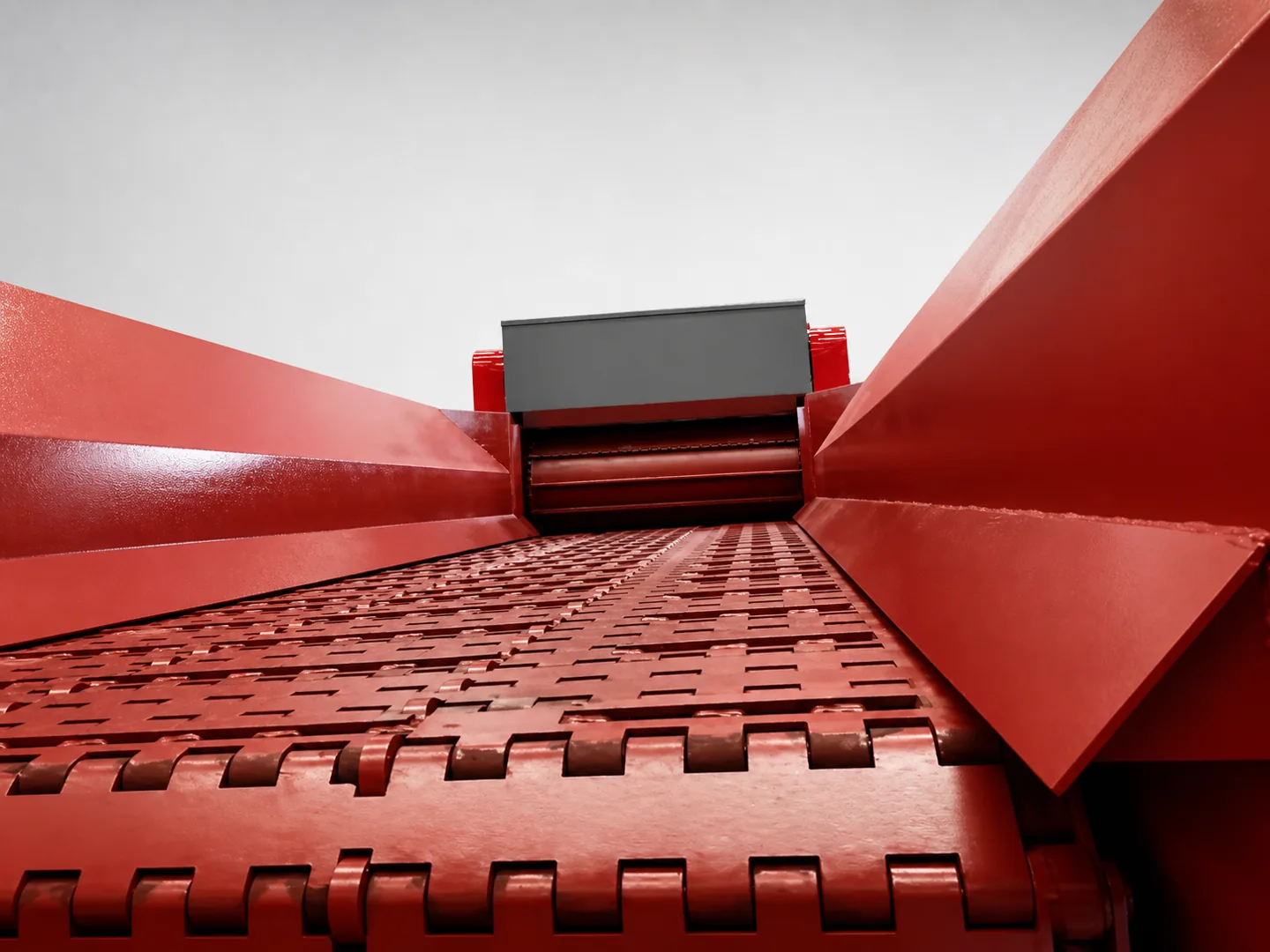

- Heavy-duty chain-plate feeding
- Configured from actual material and capacity
Technical data
Supplied reference specifications
Final configuration is confirmed before production.
| Parameter | Available information |
|---|---|
| Model | ZW1200 Series |
| Reference capacity | Approximately 10 TPH |
| Main motor power | 132 kW |
| Feed opening | 1250 × 600 mm reference configuration |
| Main machine dimensions | 9000 × 2480 × 2700 mm |
| Rotor | 800 mm · 690 rpm |
| Blades / hammers | 3 sets, 6 blades |
| Main body plate | 25 mm · Q235B |
| Feeding system | Chain-plate feeder, 5000 mm long, 0–33 m/min |
| Discharge system | Two-stage belt conveyor, 1300 / 1200 mm |
This page uses the requested ZW1200 model class. The supplied technical sheet identifies the corresponding inlet configuration as 1250 × 600 mm. Final nameplate and inlet dimensions are confirmed before production.
Model range
ZW1200–ZW1800 fixed wood crushers
Open each model page to compare feed opening, motor power and reference capacity.
Fixed model
ZW1600-800
20 TPH standard reference; project configurations available · 200 kW · 1600 × 800 mm
View specifications →FAQ
Configuration questions
Is the ZW1200 Series capacity guaranteed for every material?
No. Actual output depends on wood type, dimensions, moisture, feeding method and required finished-chip size.
What information is required for model selection?
Send raw-material photos or video, maximum dimensions, moisture, required capacity, output size and local power supply.
Is this a mobile crusher?
No. This page describes a stationary electric configuration intended for fixed-site installation.
Why is no price shown?
The feeding system, discharge arrangement, electrical specification and accessories must be confirmed for each project before quotation.
Need help selecting equipment?
Send photos or video of your raw material together with the required capacity and final product.
Choose a configuration from your material and site
Compare ZW1200–ZW1800, fixed and mobile installations, and the conditions needed to assess capacity.
Read the wood crusher selection guide
