Compare ZW1200–ZW1800
Four dedicated model pages with supplied reference specifications.
View model range →Electric Comprehensive Wood Crusher
Stationary high-capacity crushing for roundwood, roots, waste timber and biomass.
Technical configuration is confirmed only after reviewing your raw material and project requirements.
Overview

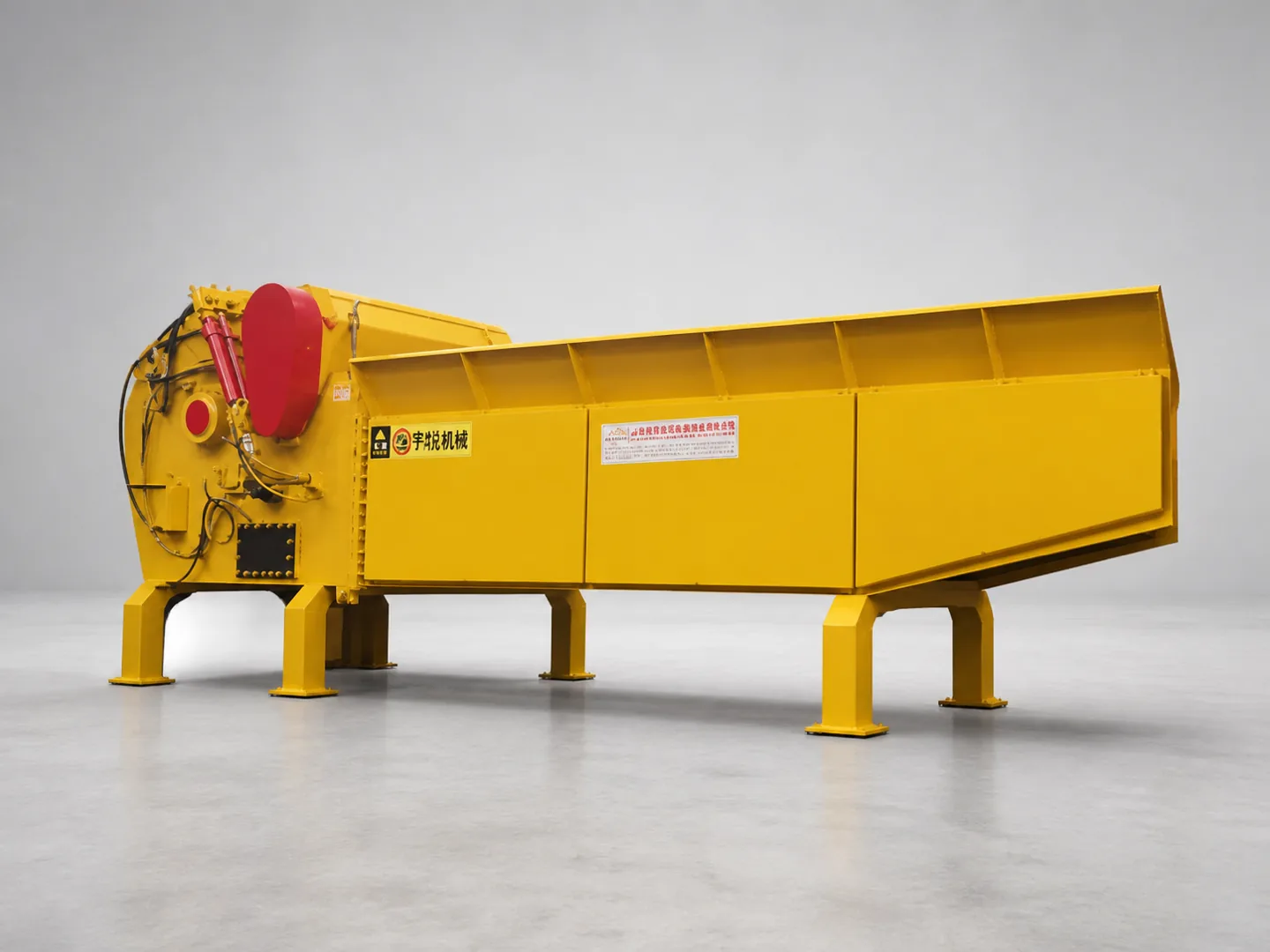

Electric Comprehensive Wood Crusher
The electric comprehensive wood crusher processes roundwood, tree roots, branches, waste timber and biomass materials in continuous production. Applicable models cover 1–40 TPH, with a heavy-duty chain-plate feeder for stable high-load conveying. The blade-and-hammer rotor supports efficient cutting, impact resistance and consistent 20–80 mm wood chips.
This industrial wood crusher machine is designed for continuous stationary production where stable feeding, high throughput and consistent wood chips are required.
Suitable Raw Materials
RoundwoodTree rootsBranchesWaste timberWood slabsBiomass residues
Main Features
- 1–40 TPH capacity across applicable electric models
- Heavy-duty chain-plate feeding for continuous operation
- Blade-and-hammer rotor for cutting and impact resistance
- Adjustable 20–80 mm finished wood chips
Technical data
Available project information
Fields not supplied are marked TBC and will be confirmed during technical communication.
| Parameter | Available information |
|---|---|
| Capacity | 1–40 TPH, depending on model and raw material |
| Maximum feed diameter | Up to 600 mm for applicable configurations |
| Output size | 20–80 mm, adjustable |
| Power | Electric motor; selected by model |

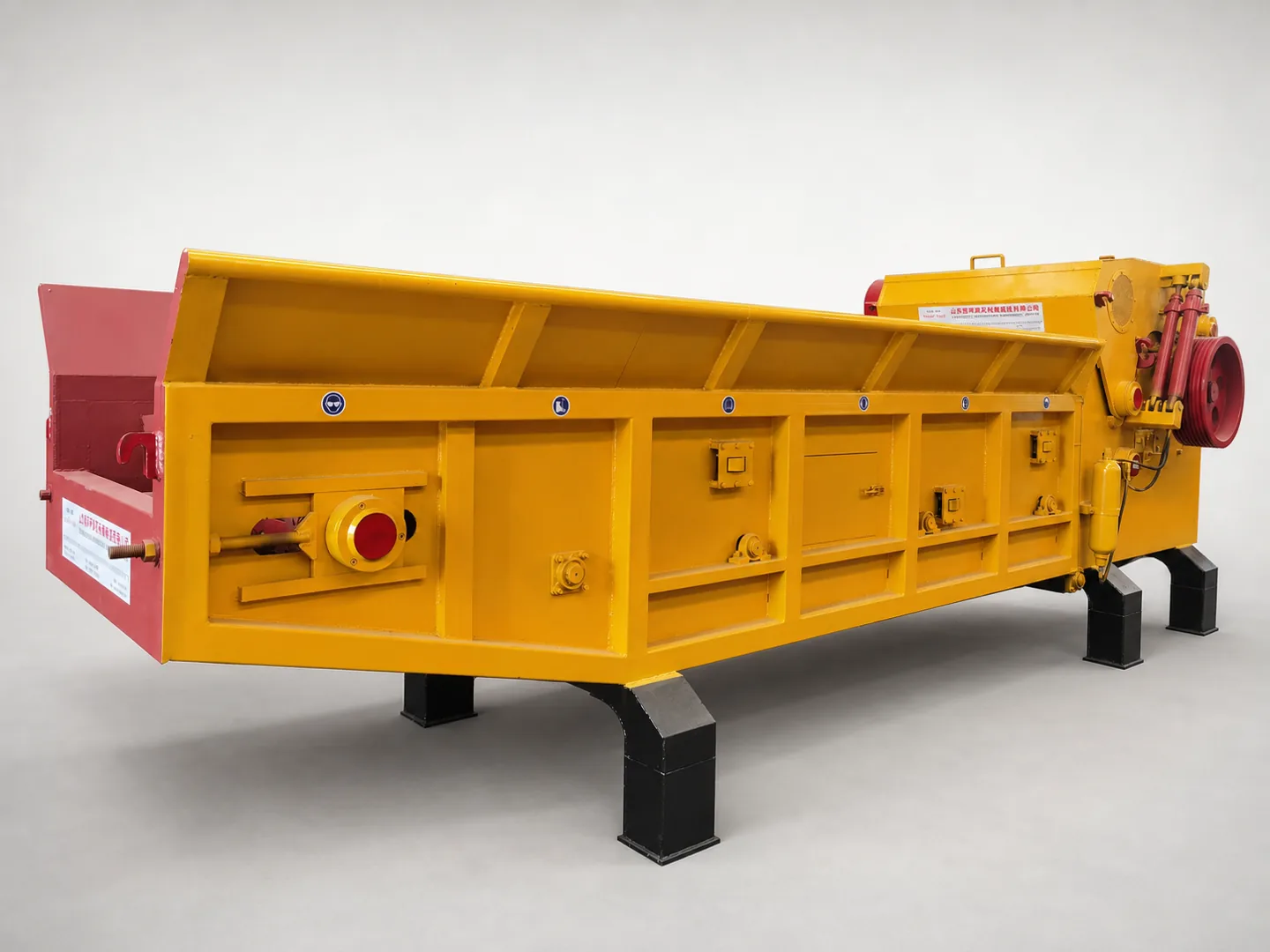

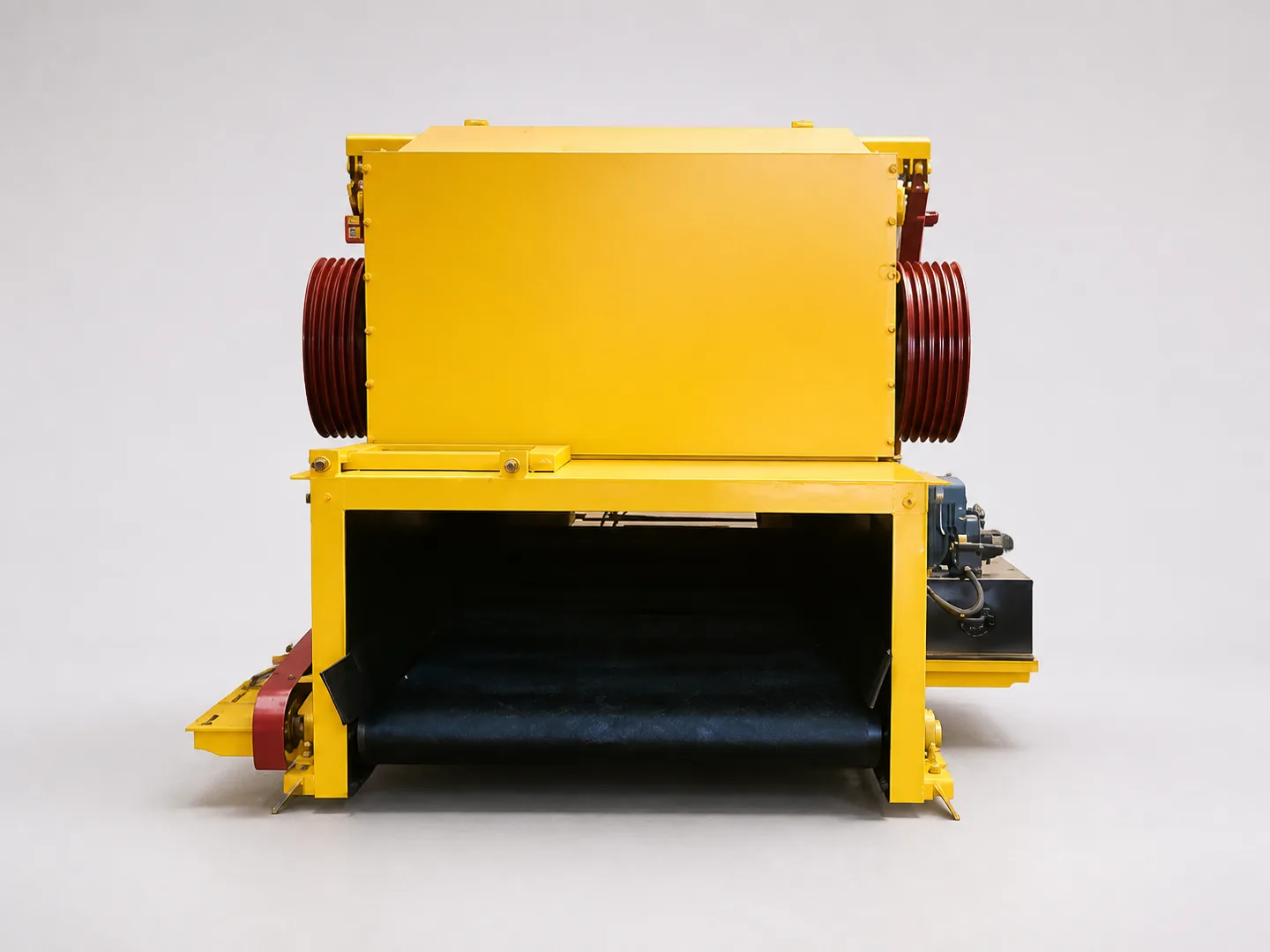

| Feeding method | Heavy-duty chain-plate feeder |

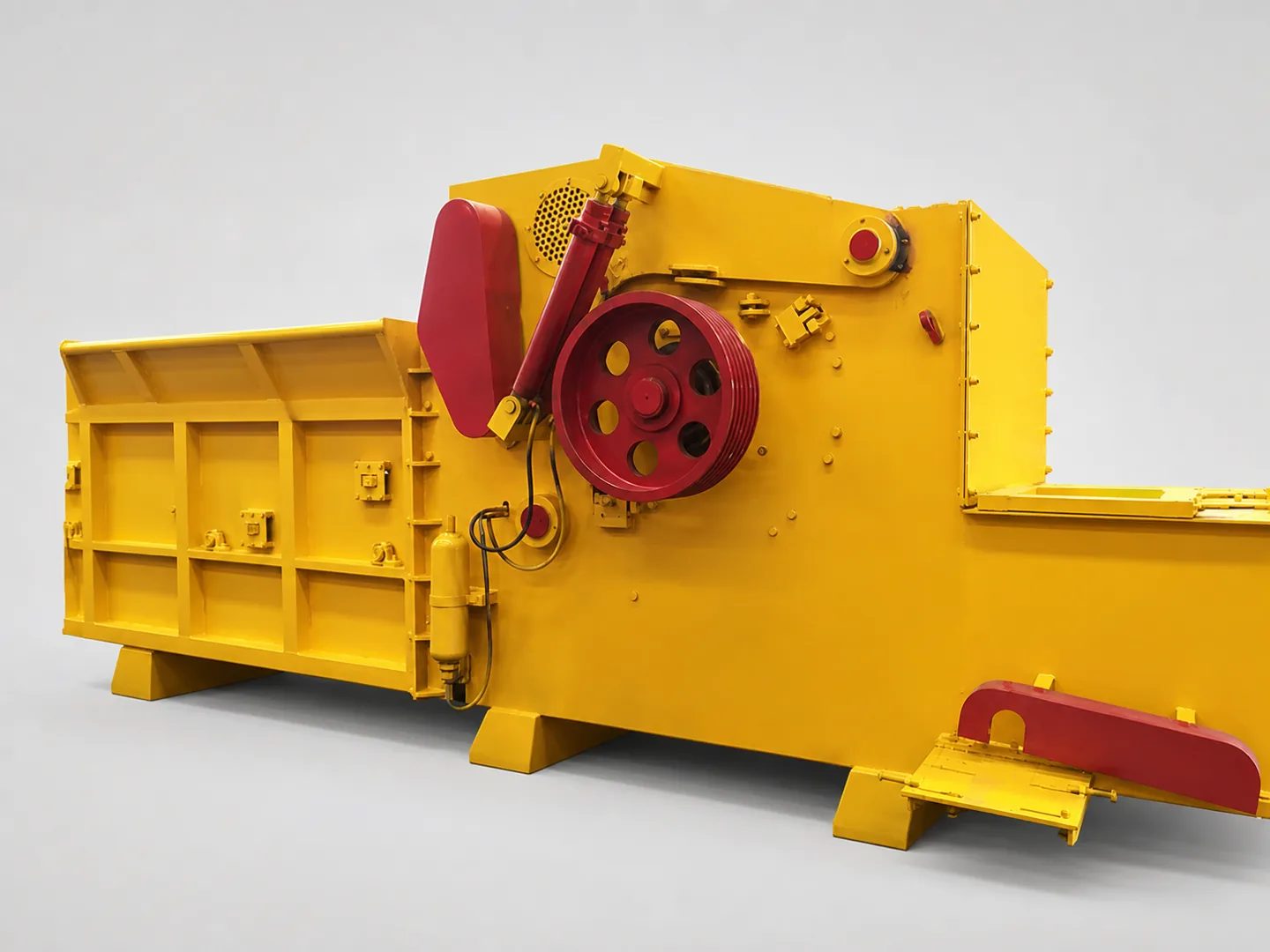

| Rotor | Combined blades and hammers |
Verified resources
Fixed models and project case
Compare four individual models or review the 2025 Vietnam project configuration.
Vietnam 30 TPH Fixed Project
A 2025 project configuration based on the customer’s local material.
View project →Working Principle
Material is fed into the machine through the selected feeding system. The processing unit reduces or conditions the material, and the finished product is discharged to the next step. The actual rotor, screen, conveying and power arrangement depends on the selected model.
Optional Configuration
- Electric or diesel drive where applicable
- Conveying and screening equipment
- Dust collection and safety protection
- Control system matched to the line
Selection guide
When to choose a stationary electric wood crusher
A stationary electric crusher suits plants with a stable power supply and continuous raw-material flow. The chain-plate feeder is selected for bulky roundwood, roots, slabs and mixed waste timber. Capacity planning must include upstream loading and downstream screening, conveying or storage so the crusher does not become isolated from the rest of the process.
Feed consistency
Describe the mix of roundwood, roots, slabs and waste timber, including maximum dimensions.
Plant utilities
Provide local voltage, frequency and available transformer capacity.
Downstream use
Define chip size and whether screening, drying or further grinding follows.
FAQ
Questions about this equipment
Contact us if your application needs a different process or configuration.
What materials can this equipment process?
Roundwood, Tree roots, Branches, Waste timber, Wood slabs, Biomass residues
What capacity is available?
1–40 TPH, depending on model and raw material
How is this equipment configured?
The electric comprehensive wood crusher processes roundwood, tree roots, branches, waste timber and biomass materials in continuous production. Applicable models cover 1–40 TPH, with a heavy-duty chain-plate feeder for stable high-load conveying. The blade-and-hammer rotor supports efficient cutting, impact resistance and consistent 20–80 mm wood chips.
What information should I send first?
Send raw material photos or video, maximum size, moisture, hourly capacity, final product, country and WhatsApp or email.
Need help selecting equipment?
Send photos or video of your raw material together with the required capacity and final product.
Choose a configuration from your material and site
Compare ZW1200–ZW1800, fixed and mobile installations, and the conditions needed to assess capacity.
Read the wood crusher selection guideZW1200–ZW1800 specification comparison
Reference data from the supplied technical sheets. Actual output depends on feedstock, moisture and chip size; project configurations are confirmed separately.
| Model | Reference capacity | Motor | Feed opening | Machine dimensions |
|---|---|---|---|---|
| ZW1200 Series | Approximately 10 TPH | 132 kW | 1250 × 600 mm reference configuration | 9000 × 2480 × 2700 mm |
| ZW1400-800 | 15–20 TPH | 185 kW | 1400 × 800 mm | 9000 × 2480 × 2800 mm |
| ZW1600-800 | 20 TPH standard reference; project configurations available | 200 kW | 1600 × 800 mm | 9000 × 2480 × 3250 mm |
| ZW1800-800 | 30–35 TPH | 280 kW | 1800 × 800 mm | 11000 × 2480 × 3250 mm |
