Continuous drying for wood chips, sawdust and prepared biomass materials.
Technical configuration is confirmed only after reviewing your raw material and project requirements.
The rotary drum dryer is designed for continuous drying of wood chips and sawdust before pelletizing or other biomass processing. Applicable single-machine configurations cover 1–10 TPH and can reduce material moisture from approximately 50% to around 10% under suitable operating conditions. Final performance is confirmed from the raw material, heat source and required output moisture.

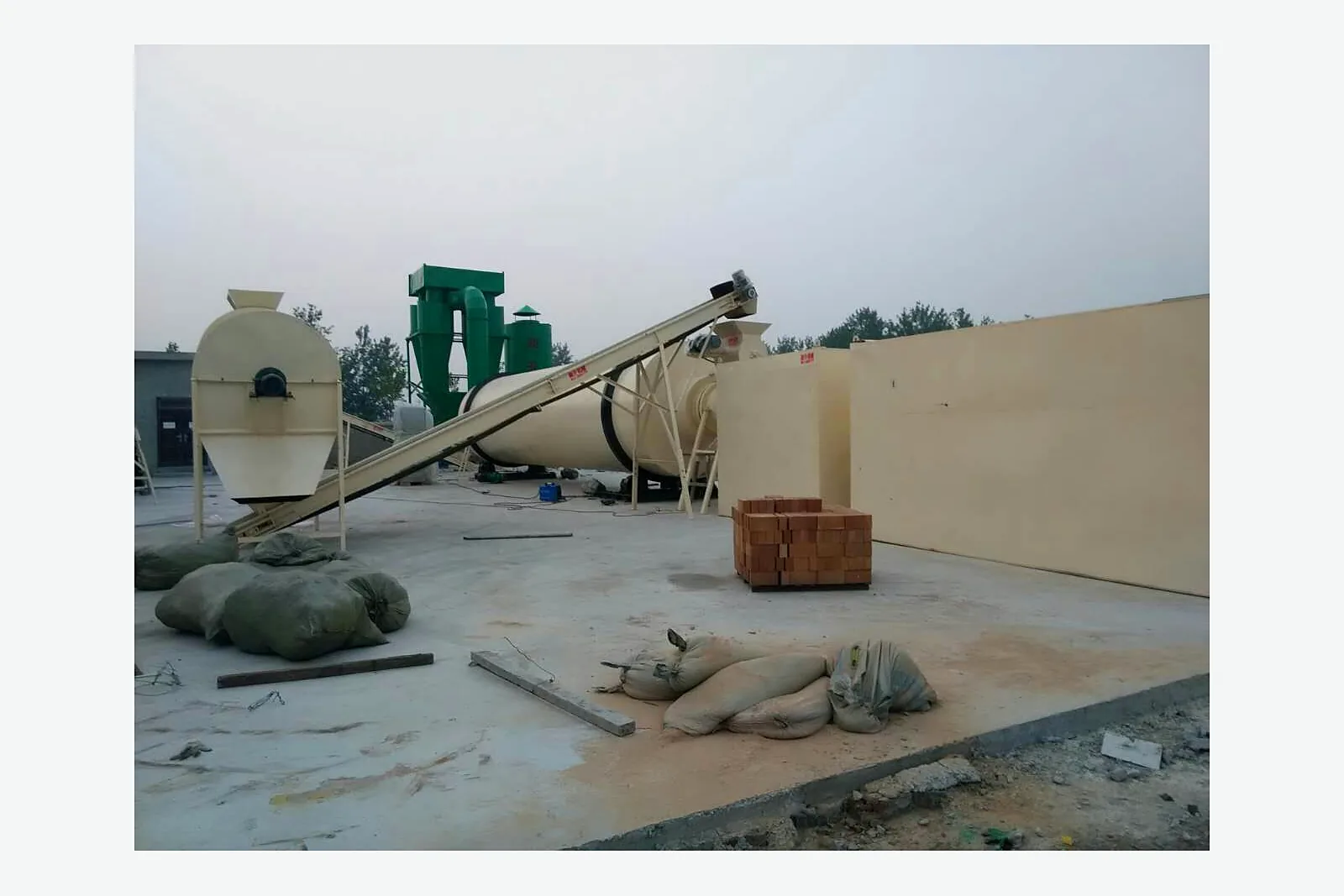

This biomass rotary dryer conditions wet wood chips or sawdust before fine grinding and pelletizing, with the heat source and residence time matched to the actual material.
Fields not supplied are marked TBC and will be confirmed during technical communication.
| Parameter | Available information |
|---|---|
| Capacity | 1–10 TPH per machine, depending on material and conditions |
| Applicable materials | Wood chips and sawdust |
| Reference input moisture | Approximately 50% |
| Reference final moisture | Approximately 10% under suitable operating conditions |
| Heat source | Selected according to local project conditions |
| Drum dimensions | TBC by model |
Material is fed into the machine through the selected feeding system. The processing unit reduces or conditions the material, and the finished product is discharged to the next step. The actual rotor, screen, conveying and power arrangement depends on the selected model.
Dryer capacity depends on the amount of water that must be removed, not only the wet feed tonnage. Share input moisture, required output moisture, material type and planned throughput. The available heat source, local fuel and emissions requirements also affect the drum, furnace, airflow and dust-control arrangement.
Measure representative input moisture and define the required final moisture.
List locally available fuel or energy and applicable site restrictions.
Match the dryer to upstream chipping and downstream grinding or pelletizing capacity.
Contact us if your application needs a different process or configuration.
Wood chips, Sawdust, Prepared biomass fibers, Selected forestry residues
1–10 TPH per machine, depending on material and conditions
The rotary drum dryer is designed for continuous drying of wood chips and sawdust before pelletizing or other biomass processing. Applicable single-machine configurations cover 1–10 TPH and can reduce material moisture from approximately 50% to around 10% under suitable operating conditions. Final performance is confirmed from the raw material, heat source and required output moisture.
Send raw material photos or video, maximum size, moisture, hourly capacity, final product, country and WhatsApp or email.
Send photos or video of your raw material together with the required capacity and final product.
